Our Biomass CHP Units

The compact and clean solution

50 kW Pellets (E4)

The E4 is the compact and clean solution for wood power generation for industry and commerce!
Nominal power
50 kWel and 120 kWth
Fuel
Wood pellets, 6mm, DIN EN Plus A1 quality
Fuel consumption
Ca. 42 – 44 kg/hrs*
Total efficiency
85%*

MORE DETAILS

Electric efficiency
25%*
Thermal efficiency
60%*
Max. Flow/return temperature
90°C / 60°C (5000l/h) Return max. 65°C
Nominal voltage
400 V, 200 V
Operation hours
Up to 8000 hrs/a**
Control unit
Fully automatic operation, 24/7 remote monitoring
Case type
20 ft HC-Sea container, L 6,058 m x W 2,438 m x H 2,869 m
Commissioning duration
8 – 72 hrs.**

*depending on fuel quality **depending on maintenance and fuel quality

50 kW Wood Chips (E5)

The Entrenco E5 woodchip uses inexpensive woodchips. After wood gasification, a CHP unit provides for the generation of electricity and heat, as in the E4. The plant is particularly suitable for forestry and agriculture.
Nominal power
50 kWel and 120 kWth
Fuel
Wood chips EN14961-1, P16-P45, 8% - 10% humidity
Fuel consumption
Ca. 45 – 48 kg/hrs*
Total efficiency
85%*

MORE DETAILS

Electric efficiency
25%*
Thermal efficiency
60%*
Max. Flow/return temperature
90°C / 60°C (5000l/h) Return max. 65°C
Nominal voltage
400 V, 200 V
Operation hours
Up to 8000 hrs/a**
Control unit
Fully automatic operation, 24/7 remote monitoring
Case type
20 ft HC-Sea Container, L 6,058 m x W 2,438 m x H 2,869 m
Commissioning duration
Ca. 2 days**

*depending on fuel quality **depending on maintenance and fuel quality

135 kW Wood Chips, Briquettes

The 135 kW plant has proven itself very well and is one of the 'classics'. Very suitable for forestry and wood processing, hotels (also with spa), breweries, dairies, nurseries and heating networks. In addition to wood chips, this plant can also be operated with wood briquettes (pressed wood chips from wood residues).
Nominal Power
135 kWel and 266 kWth
Fuel
Wood Chips 30-70mm
Fuel consumption
Ca. 95 kg/hrs*
Total efficiency
83,3 %*

MORE DETAILS

Electrical efficiency
28,1%
Thermal efficiency
55,4%
Max. Flow/ return temperature
80-88°C /  return max. 70°C
Rated Voltage
400 V

*dependent on fuel quality **dependent on maintenance and fuel quality

GALLERY
Our Products in Use

Fields of Application

Electricity and heat production can be used in different ways, depending on your needs. Here are a few examples.

Power Generation

Electricity can be fully or partially self-consumed. In addition, electricity can be sold on the free market and fed into the public grid.

Heat Generation

The heat can be used to heat buildings, to generate hot water or as process heat, e.g. for material drying.
When generating process heat, the reliability of the plant is particularly important so as not to interrupt the production process.

PROJECTS WITH PROCESS HEAT

Mühlbach, South Tyrol

A manufacturer of glulam beams in Mühlbach, South Tyrol, connected a 125 kWel plant to the grid in October 2013 and is currently supplying 139 kWel.

The special feature: The plant is not fired with wood chips but with wood briquettes.



Annual operating time: +8,600 hours

Wegscheid, Germany

The prototype plant has been in operation in Wegscheid since 2009 and generates 125 kWel.

The electricity is fed into the utility grid, the heat is sold as process heat to three neighboring companies and used for heating.



Cooling Generation

In addition to heat, cold can also be produced in combination with an absorption refrigeration plant. Thus, our plants can provide added value all year round.

PROJECTS WITH COOLING

Sampeyre, Italy

In early 2014, a 125 kW + 65 kW plant was commissioned in Sampeyre, Italy. The customer, a salami producer, uses the electricity and converts the generated heat into cold.

Special feature: “Hot version”, heat is extracted at 105°C.



Annual operating time: +8,200 hours

Own Consumption and Energy Supply

Our products are suitable both for captive use for companies and for feeding into the public power grid (neighboring companies or residential complexes).

Power fed into a Combined Heat and Power Plant

The gasifier can feed into a combined heat and power plant in parallel with a biogas plant.

Drinking Water Production

In combination with a condensation plant, heat can even be used to produce drinking water from the air.

Are you interested?

Contact us now free of charge and without commitment. With a short information about your needs, the location of your company and what your expectations are, we can advise you on how a biomass CHP system can be used in your company.
Contact us

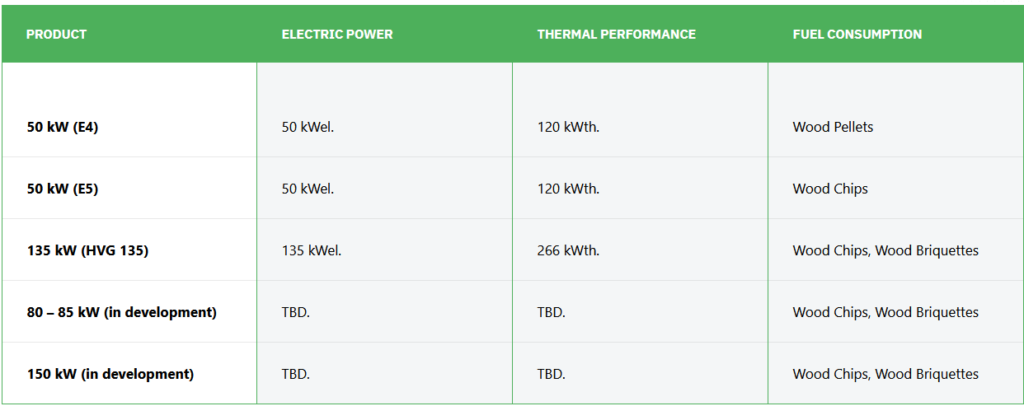

Product Overview

Compare our CHP units and their performances.
PRODUCT
0
/yr
50 kW (E4)
50 kW (E5)
135 kW (HVG 135)
80 – 85 kW (in development)
150 kW (in development)
ELECTRIC POWER
89
/yr
50 kWel.
50 kWel.
135 kWel.
TBD.
TBD.
THERMAL PERFORMANCE
0
/yr
120 kWth.
120 kWth.
266 kWth.
TBD.
TBD.
FUEL CONSUMPTION
89
/yr
Wood Pellets
Wood Chips
Wood Chips, Wood Briquettes
Wood Chips, Wood Briquettes
Wood Chips, Wood Briquettes

FUELS

img_1

Pellets

Wood pellets are pressed wood products, which are mainly made from sawdust. Since they have a uniform shape as well as high quality, they are very suitable for our biomass cogeneration plant. The pellets are transported to the boiler via a conveyor belt.
Advantages
- Space-saving alternative, as the pellets are ready for processing
- High standardization and thus good combustion
- The clean and tidy alternative
- Less service and maintenance of the machines
img_2

Wood Chips

Wood chips are produced from residual wood, e.g. from forest wood, from sawmill by-products or from industrial residual wood. Wood chips are particularly suitable as a fuel for combined heat and power plants in rural areas, as more space is needed to store the material. The wood chips are transported to the wood boiler by a conveyor belt. Here, wood chips are not burned directly, but first gasified in a wood gasifier.
Advantages
- Inexpensive material
- Easy to use for sawmills or other woodworking industries
- Supplier market is very developed and therefore the deliveries are easier to plan
Holzbriketts-BHKW

Wood Briquettes

Wood residues from wood processing, such as planing or sawdust, are compressed into wood briquettes.
Advantages
- Inexpensive material
- Easy to use for sawmills or other woodworking industries
- Supplier market is very developed and therefore the deliveries are easier to plan

Do you have questions?

We have compiled the answers to important questions for you.

Is a biomass CHP unit worthwhile for my company?

A biomass CHP unit with wood-fired power generation is particularly worthwhile for companies that require constant large amounts of thermal energy for their operations – even in summer. This is because a biomass cogeneration plant is only maximally economical if it operates at full load for a certain number of hours per year. Alternatively, excess heat energy can also be converted into cooling energy in the summer.

What are the requirements for the use of a CHP unit?

Our CHP units generate electricity and heat all year round. Therefore, there should be sufficient electricity and heat demand throughout the year.

Technical requirements:
To ensure a smooth start-up of the system on site, the customer will provide the following on-site installations:

  • Foundation with sufficient access to all system components
  • Sufficient building (if installed indoors)
  • Sufficient air supply with adequate circulation rate (if installed in the building)
  • Three-phase connection with 400 V, 100 A
  • External fuel silo in close proximity to the E5 unit.
  • Space for conveyors and storage
  • Space for ash house for ash discharge
  • Heat extraction (5000 l/h ∆T 25°C)

How much does a biomass CHP unit for wood-fired power generation cost?

A plant for wood-fired power generation is a very individual solution, where the investment costs and also the running costs can be very different. In addition, the various fuels and, if applicable, their processing also result in varying costs. Depending on the application in the process or in the building, different subsidy amounts also come into play, so that a generalization of the total costs is hardly possible.

What fund support options are available?

Companies that use wood-fired power generation by means of a biomass cogeneration plant to generate energy and thus make a contribution to climate protection receive financial support at many levels in Germany. In addition to the feed-in tariff for surplus electrical energy, the German Federal Ministry of Economics and Export Control (BAFA) supports corresponding projects.

The Kreditanstalt für Wiederaufbau (KfW) also supports climate-friendly rethinking with development loans and repayment subsidies of up to 55 percent of the eligible costs. And the individual German states and regions also reward the use of biomass CHP units as progressive and environmentally friendly energy generation.
